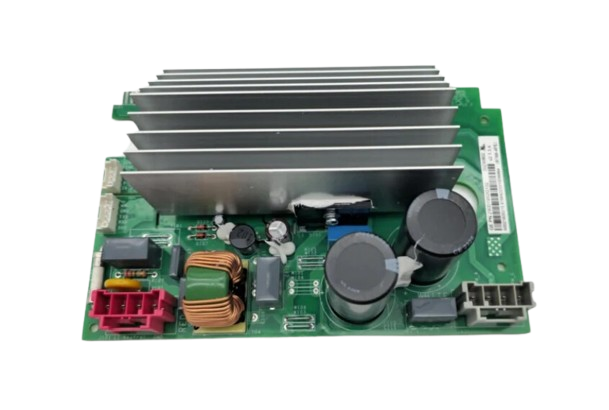

General Electric WH22X35837 Washer Inverter Board FL

Product Overview:

Regulates electrical power delivered to the washer's drive motor, the General Electric WH22X35837 Washer Inverter Board FL is an electronic motor-control component used in select GE front-load washing machines. The board receives operating commands from the washer's electronic control system and converts those commands into controlled electrical output for the drive motor. This allows the motor to produce the movement required by different stages of the wash cycle.

Motor Power Regulation:

The inverter board adjusts the electrical output supplied to the drive motor according to the washer's programmed operating requirements. Changes in this output allow the motor to operate at different speeds and directions as required during washing and spinning. The board therefore serves as the electronic link between the washer's control commands and the motor's physical rotation.

Drive Motor Response:

During washer operation, the drive motor must produce different rotational patterns for washing, load distribution, and high-speed extraction. The inverter board processes the control signals associated with these requirements and delivers the corresponding electrical output to the motor. This controlled motor response enables the washer drum to change direction and speed throughout the selected cycle.

Replacement Guidelines:

Replacement may be necessary when the General Electric WH22X35837 Washer Inverter Board FL can no longer provide the electrical control required for normal drive-motor operation. Drum rotation may be prevented or programmed movement may be interrupted when the board can no longer control the motor output as intended, while circuit-board damage or deteriorated connectors can also affect its operation.

Common Signs of Wear:

A malfunctioning inverter board may be associated with:

Drum fails to rotate during wash or spin.

Intermittent or inconsistent drum movement.

Washer fails to reach the programmed spin speed.

Motor operation is interrupted during the cycle.

Visible circuit-board damage.

Damaged or deteriorated electrical connectors.

Equipment Compatibility:

The General Electric WH22X35837 Washer Inverter Board FL is intended for select GE front-load washing machines using the corresponding electronic motor-control system. Its application depends on the washer's control architecture and drive-motor configuration.

Technical Specifications:

Brand: General Electric

Part Number: WH22X35837

Product Type: Inverter Board

Appliance Type: Washer

• What does the GE WH22X35837 inverter board control?

  The WH22X35837 regulates electrical output to the washer's drive motor. It allows the motor to operate at the required speed and direction during different cycle stages.

• How does an inverter board affect washer drum movement?

  The inverter board adjusts the electrical power supplied to the drive motor. This enables controlled drum movement during washing, repositioning, and spinning.

• Why does a front-load washer change drum direction during washing?

  Changing drum direction helps move and reposition clothing inside the wash basket. Alternating movement supports more consistent interaction between the clothing, water, and detergent.

• What happens during the washer's high-speed spin cycle?

  The inverter board regulates motor operation so the drum can reach the required spin speed for water extraction.

• What is the role of the inverter board between the washer controls and motor?

  It converts control commands into regulated electrical output for the washer's drive motor.
