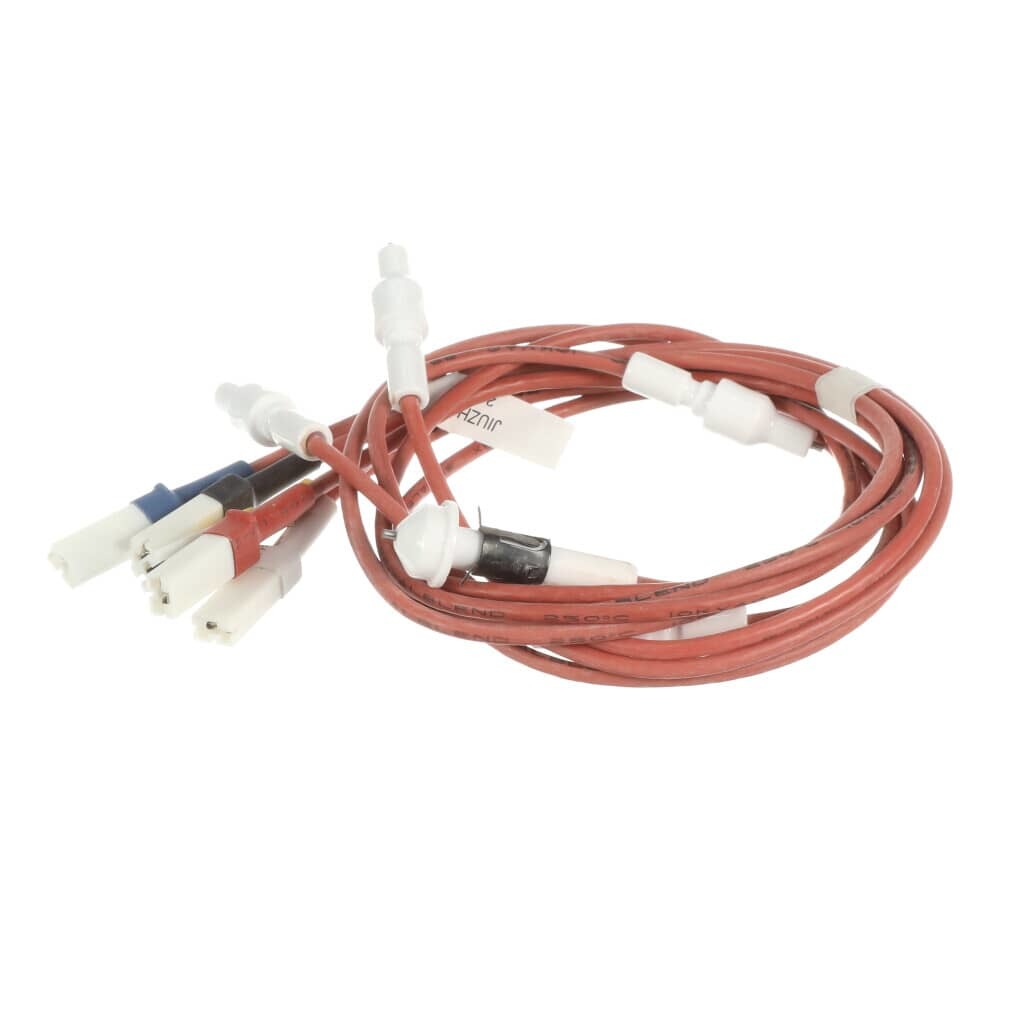

GE WB18X26980 Range High Voltage Electrodes & Harness

SKU: WB18X26980 4-WB18X26980 Brand:
GENERAL ELECTRIC
Availability:
In Stock
(0)
$52.92 Price reduced from $57.95
Save $5.03
Have a Question? 866-723-0907

Description

The General Electric WB18X26980 Range High Voltage Electrodes & Harness generate and deliver high-voltage sparks for burner ignition. It works by passing electrical energy to the harness and to the electrodes that create sparks at the ports where the gas is ignited. The ignition module is connected to the assembly by a set of electrodes, which makes a complete ignition circuit. It is mounted under the cooktop surface to be fed through special channels to the respective burners. Its functioning enhances dependable ignition and stable burner start-up, and assists in maintaining secure and cooking performance.

This Part Fits the Following Models

45 models
GE Caf CGB500P2M1S1 Gas Range Or Dual Fuel GE JGB660DEJ5BB Gas Range GE JGB660DP1BB Gas Range GE JGB660EEJ5ES Free Standing Gas Range GE JGB660DP1WW Gas Range GE JGB660FEJ2DS Free Standing Gas Range GE JGB660EP1ES Gas Range GE JGB660FP1DS Gas Range GE JGB660SEJ5SS Free Standing Gas Range GE JGB660SP1SS Gas Range GE JGB720BEJ2TS Free Standing Gas Range GE JGB735DP1BB Gas Range GE JGB735DP1WW Gas Range GE JGB720SEJ5SS Free Standing Gas Range GE JGB660YP1FS Gas Range GE JGB720EEJ5ES Free Standing Gas Range GE JGB735EP1ES Gas Range GE JGB720FEJ2DS Free Standing Gas Range GE JGB735FP1DS Gas Range GE JGB720BEJ1TS Gas Range Or Dual Fuel GE JGB720EEJ3ES Gas Range Or Dual Fuel GE JGB720EEJ4ES Gas Range Or Dual Fuel GE JGB720FEJ1DS Gas Range Or Dual Fuel GE JGB660DEJ3BB Gas Range or Dual Fuel GE JGB660DEJ4BB Gas Range Or Dual Fuel GE JGB660DEJ3WW Gas Range Or Dual Fuel GE JGB720SEJ4SS Gas Range Or Dual Fuel GE JGB720SEJ3SS Gas Range Or Dual Fuel GE CGB500P3M1D1 Gas Range Or Dual Fuel GE JGB700EEJ3ES Gas Range Or Dual Fuel GE JGB700EEJ4ES Gas Range Or Dual Fuel GE JGB700FEJ1DS Gas Range Or Dual Fuel GE JGB700SEJ3SS Gas Range Or Dual Fuel GE JGB700DEJ4BB Gas Range Or Dual Fuel GE JGB700DEJ4WW Gas Range Or Dual Fuel GE JGB700DEJ3WW Gas Range Or Dual Fuel GE JGB700DEJ3BB Gas Range Or Dual Fuel GE JGB700SEJ4SS Gas Range Or Dual Fuel GE JGB660SEJ3SS Gas Range Or Dual Fuel GE JGB700BEJ1TS Gas Range Or Dual Fuel GE JGB660SEJ4SS Gas Range Or Dual Fuel GE JGB660DEJ4WW Gas Range Or Dual Fuel GE JGB660EEJ3ES Gas Range Or Dual Fuel GE JGB660EEJ4ES Gas Range Or Dual Fuel GE JGB660FEJ1DS Gas Range Or Dual Fuel
Showing of 45.0
Manufacturer Name: GENERAL ELECTRIC
Product Number: WB18X26980
OEM Part Number: WB18X26980
Product Description: Electrodes & Harness H.V

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Step 1: Your range should be disconnected from the wall outlet.

Step 2: The screws should be taken out and the oven door should be detached.

Step 3: The burner grates and burner caps should be removed, placing them aside safely.

Step 4: The three screws that fasten the electrode leads to the back panel should be identified and taken out.

Step 5: The colored leads of the electrode should be unplugged from the back panel and the electrode assembly should be extracted.

Step 6: The current harness HV assembly should be withdrawn and the colored leads should be disconnected from the plug.

Step 7: The new harness HV assembly should be positioned by attaching the colored leads to the plug and fastening it to the back panel with the three screws.

Step 8: The new electrodes should be placed and the colored leads should be connected to the back panel, then fastened with the three screws.

Step 9: The burner grates and burner caps should be returned to their original positions.

Step 10: The oven door should be reattached and secured.

Step 11: The oven should be reconnected to the wall outlet.

Please remember that these instructions should be utilized as general guidance and should always be utilized alongside the manufacturer's manual, if available.
